Professional ETO Sterilizer Manufacture





    We are the leading manufacturer of OXIDE STERILIZER in china , Our Tao Group series sterilizer

which is conformity with CE Standard have been widely used in Medical Device , health care Facilities

plastics and Disposables products, culture goods and currency etc. We also could manufacture

matched Pre-conditioning system, aeration room and professionally ethylene oxide residual gas

treatment system.

    Our Technical team (Tao Group) is working in Sterilization fields more than 20 years and we are

the drafter of China {ETHYLENE OXIDE STERILIZATION} Standard.

    Our Sales team {TAO GROUP} has a lot of experience in Pre-Sales and after Sales Service. We

have more than 70% Market Shares in china and our products have been exported to many countries

like EGYPT .TURKEY,SOUYTH AFRICA , ALGERIA ,PARAHAUY , UZBEKISTAN ,MALAYSIA ,

RUSSIA ,POLAN ,VENEZUELA,etc .

    We are looking forward to establishing friendly business relation under mutual benefit between

our companies from now on. Give you our best goods and perfect service is our promises

WELCOME TO OUR FACTORY AND SERVICE QUALITY IS OUR MOTTO







         We also can manufacture special Size Sterilizer according to your real demands and requirements beyond the following specification







2} Working Principle

Ethylene Oxide is a Broad –Spectrum bactericidal agent and can be used to kill various kinds of micro-organism including

bacterial Vegetativeform, spore, virus, andfungal spore. It is generally agreed that Ethylene Oxide kills the micro-organism

because it produces a non –special alkylation with the protein, DNA, RNA.

3} Advantage

         EQ Sterilization is a Chemical process consisting of four primary variables, GAS concentration, Humidity, Temperature

and time. Incomparison to other sterilization.

EQ sterilization is reliability and gentleness ,high permeable, board-spectrum bactericide which can kill all known viruses ,

bacteria ,and fungi.annihiliation even the most Sterilization –resistant types of micro-organism, bacterial spores.

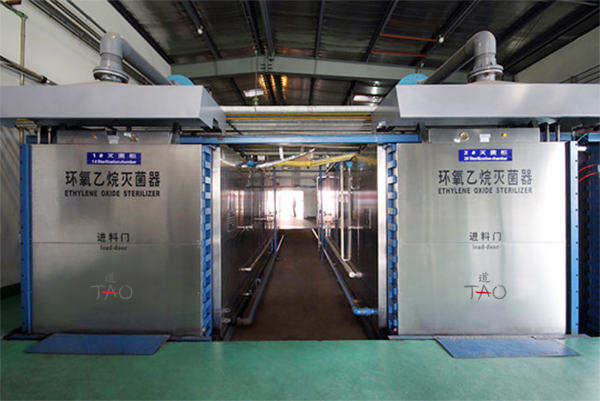

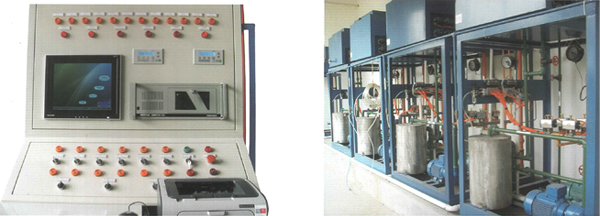

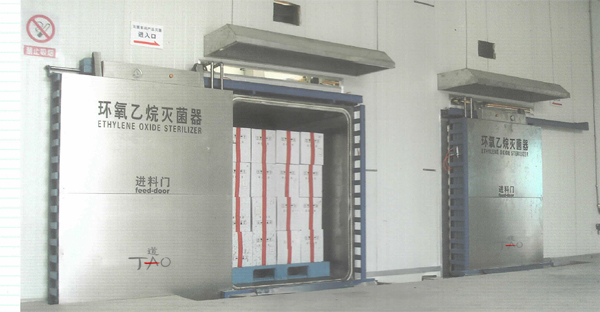

4} Main Structure

         Ethylene Oxide System isconsisting of sterilizing chamber, vacuumsystem, heating circulation system. Humidification

system, gasifying system, door and seal system. Residual gas treatment system etc.

5} Primary Parameter of Technical

Sterilizing temperature: 20 – 100 degree C (empty chamber<+_ 3degree C, Full chamber<10Degree C)

Sterilizing Pressure:-85K Pa - + 85K Pa Precision: 1 Grade, resolution: 0.1KPa

SterilizingHumidity: 30% RH-85% RH

Humidification: Arbitrarily

Sterilization concentration: 250mg/L, 1200 mg/L

Sterilizing time: 30 min -12 hours

Max power :< 65KM, Electrical Heating

Max Lead rate :< 0.1KPa/MIN

Power Source: 3 phase, 4 wire, 380 V _+10%, 50Hz

Working temperature: 5-40Degree C, Humidity :< 80%RH



6} Applied Range

1.      Medical Device:

Injector , infusion equipment, surgical gloves, various catheter, oxygen breathing apparatus ,suture ,operation kits,

anesthetic facilities ,medical dressing , endoscope, cardiac pacemaker, dental device, heart-lung machine etc.

2.      Health Care Article

Women sanitary Towel, Napkin, Disposable Chopsticks, Disposable Dishware

3.      Medical Material and cosmetic

Chinese medicinal plant, capsule, western medicines and partial cosmetic articles etc.

4.      Culture Goods and Currency

Bibliographicfiles, books, andpaintings, cultural relic, currency and herbariumetc.Clothing, leather, pelage, and fur,

spices, chemical fiber, Teryleneetc. . . .
