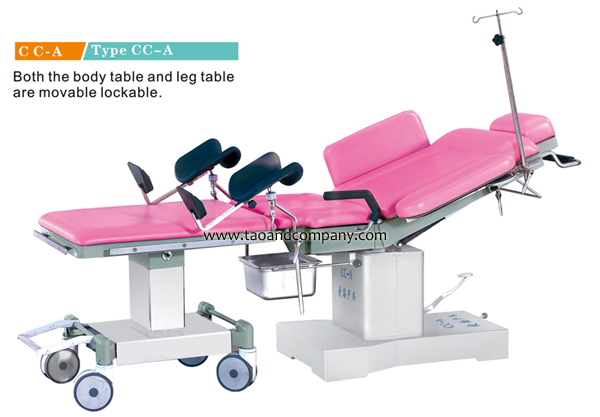

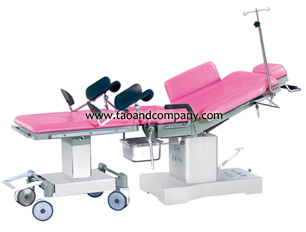

CC-A, multifunctional obstetric table is designed for Gynecological inspection, diagnosis and operation, and is a special chair for delivery as well. the board with makes possible to accommodate both the mother and new born baby so that a good nursing can be guaranteed, The movement of this Chair is controlled manually .The New imported Gas spring controls position of the baby table, so it is easy to operate, convenient and safe .lifting of the body table and good wheels is conducted through a hydraulic system and transversal valve .which could lesson work intensity of medical staff. Adjustment of leg table is driven by mechanical gearing. It is equipped with a lot of accessories, so it is multifunctional table
Main Specification Parameter: C C ¨CA / TYPE CC-A
Item |
Contents |
Length of the body table and foot table |
1150mmx850mm |
Adjustment range of back section |
up 0-42o down 0-6o |
Adjustment range OF Abdomen section |
up 0-20o down 0-8o |
MAX degree of forward and backward tilting of table forward ¡Ý8o |
backward ¡Ý22o |
Lowest height of body bed |
640mm ¡« 880mm |
Size of table board |
body table 1150 x 650 mm
Leg table 850 x 600mm | |
