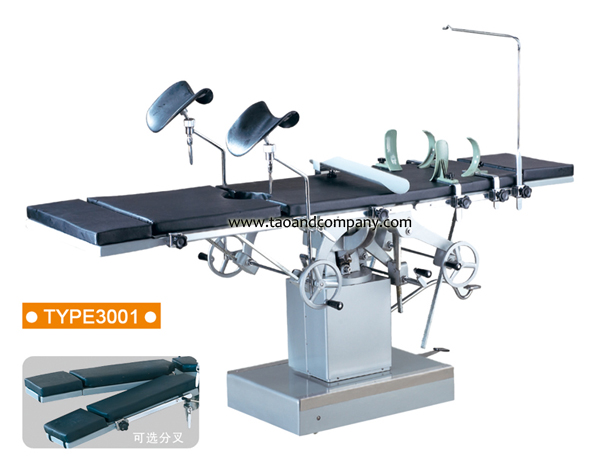

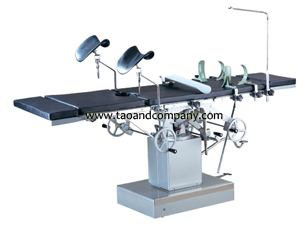

The operating table is supplied for thoracis surgery,abdominal surgery,ophthalmology,otorhinolaryngology,obstetrics and gynecology,urinary surgery and orthopaedics.
Lifting of this operating table is controlled by foot oil pump,and the rest of the movements are controlled by mechanical transmission side manipulation.
Main specification parameters
Item |
Contents |
Length and width of table |
2100mmx480mm |
Max.&Min.Height of table |
1045mmx800mm |
Max.degree of forward and backward tilting of table |
forward≥35o backward≥20o |
Max.degree of left and right |
left≥22o right≥22o |
Oil pump travel |
240mm |
Head board(275x310mm) |
It can be folded for 90 degree,elongated or unloaded. |
Back board(500x480mm) |
down≥22o, up 75o |
Kindney bridge(85x415mm) |
It can be increased up to 120mm,or equal to the table surface. |
Leg plate(500x480mm) |
down≥90o |
Seat section(450x480mm) |
There is a round hole between seat rest and leg rest. | |
