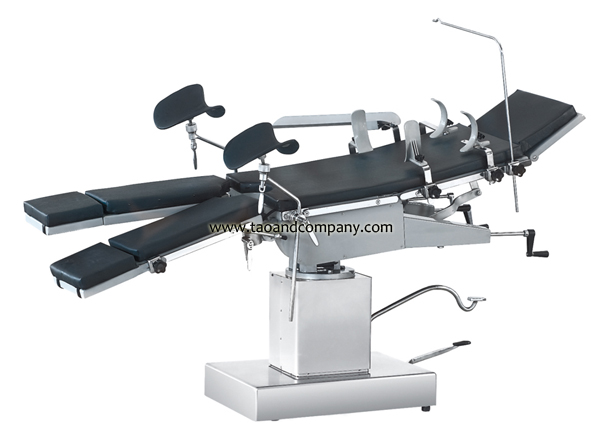

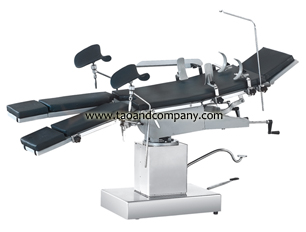

The operating table is supplied for thoracis surgery,abdominal surgery,ophthalmology,otorhinolaryngology,obstetrics and gynecology,urinary surgery and orthopaedics.
The rise and drop of operating table was handled by pedaling the oil pump,other various movements were handled by the mechanical transmission head.
Main specification parameters
Item |
Contents |
Length and width of table |
2100x480mm |
Max.&Min.Height of table |
1045mmx800mm |
Max.degree of forward and backward tilting of table |
forward≥55o back ward≥35o |
Max.degree of back rest adjustment |
left≥25 o right≥25 o |
Max.degree of back rest adjustment |
up≥85 o down≥10 o |
Waist rest elevation |
120mm |
Leg rest adjustment |
down≥90 o |
Oil pump travel |
240mm |
Head rest(275mmx310mm) |
It can be folded for 90 degree,elongated or unloaded. | |
