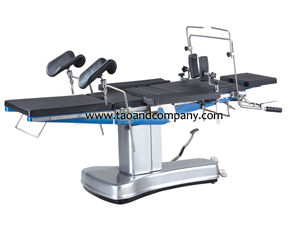

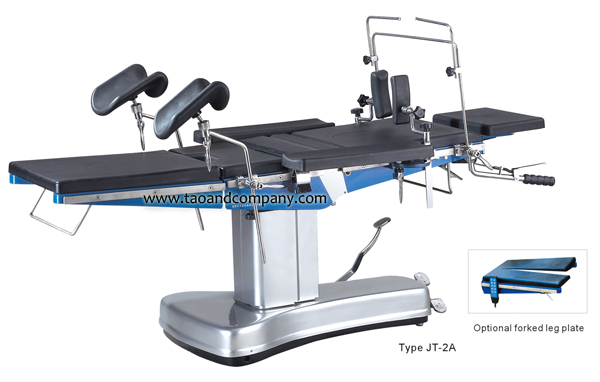

This multi-functional operating table is used for operations and examination of thoracic surgery,abdominal surgery,orthopaedics,cerebral surgery,ophthalmology,otorhinolaryngology,obstetrics and gynecology and urinary surgery.There is a shelf fixed under the table.Cassette is put on the shelf and adjusted to the radiography position,then X-ray radiography is taken.The mattress is made of foam polyurethane.The bottom seat is movable and can belocked.Using the imported air-spring,the table has got the best position for clinical uses with its unique electric hydropneumatic technology and isconvenient to operate,so it is helpful to improve operation efficiency of doctors.
Main specification parameters
Item |
Contents |
Length and width of table |
1960mmx480mm |
Max.&Min.Height of table |
930mmx690mm |
Max.degree of forward and backward tilting of table |
forward≥25 o backward≥20 o |
Max.degree of left and right tilting of table |
left≥18o right≥18o |
Range of leg rest adjustment |
down≥90o detacgabke |
Range of back rest adjustment |
up≥75o down≥10o |
Range of head rest adjustment |
up≥45o down≥50o detachable |
Elevating height of kidney bridge |
≥80mm | |
